Gallagher Multi Connection Plate and Tape Connector (4)

Key Features

• Converts a corner insulator into a start or end insulator
• Can also be used as a tape connector
• Suitable for mounting a wire clamp
• With tab for use as a gate handle anchor insulator
• Suitable for 20 mm and 40 mm tape

Product Information

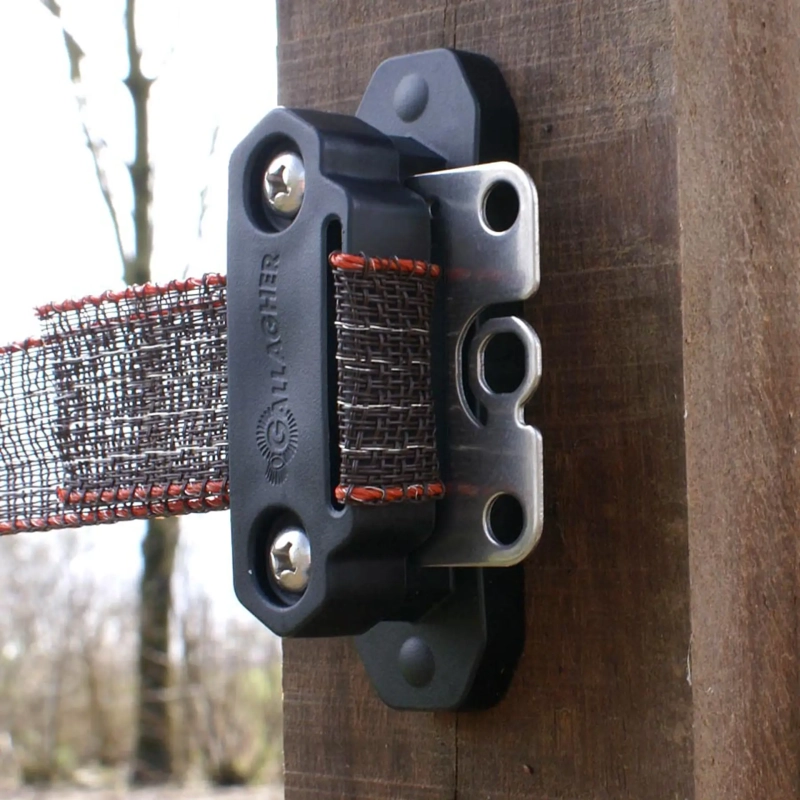

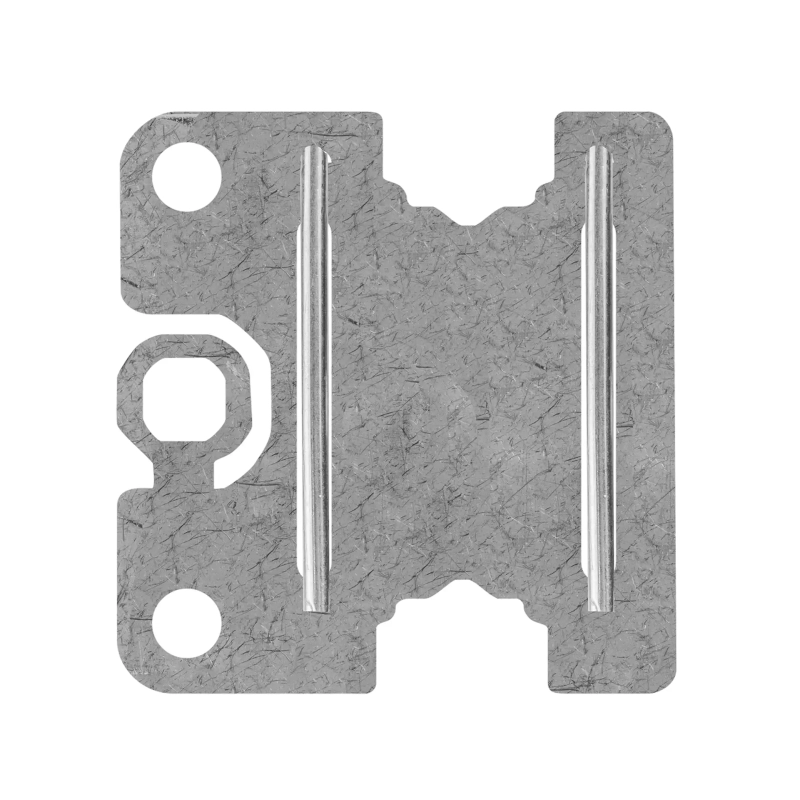

The Multiconnect intermediate plate and tape connector is a multifunctional stainless steel solution designed to improve the safety and efficiency of tape fencing systems. It functions both as a tape connector and as an intermediate plate for TurboStar and Turboline corner insulators.

Multifunctional

With the Multiconnect, the Turboline corner insulator can be used as a start or end insulator. The TurboStar corner insulator can also be used on its own as a start or end insulator, but the multi connection plate provides an even stronger construction.

Since start and end insulators are under constant tension, they must be stronger than the tape itself. That is why Gallagher always recommends using the multi connection plate with these insulators.

The reversible tab also allows the installation of a round wire clamp (010851/603568) for optimal conductivity of parallel and continuous conductors. In addition, the tab can also serve as an anchor insulator for a gate handle.

Tape Connector

The plate can also be used as a tape connector. Thanks to the included pins, connecting and securing the tape is quick and easy. Made from high-quality stainless steel, the multi connection plate offers excellent durability and reliability, even in demanding conditions.

Suitable for 20 mm and 40 mm tape.
